ACTUATORS WITH INTEGRATED LOCKING SYSTEM

Actuators with integrated locking system

Description

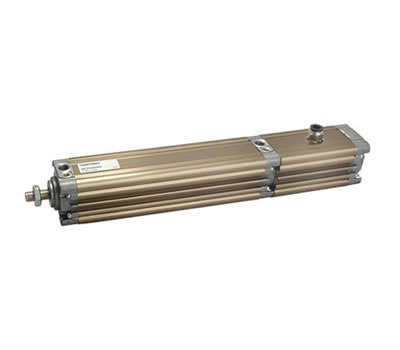

Pneumatic actuators with integrated safety locking system Ø 32-63 mm (NFZ series).

WORKING PRESSURE3÷10 bar
RELEASE PRESSURE>_3 bar min
AMBIENT TEMPERATURE-10÷70°C
FLUIDFiltered air 30 μm
BARRELExtruded aluminium alloy with groove for embedded sensors
PISTON RODChromium-plated steel
MAGNETIC VERSIONStandard (magnetic switch DF-…series). High repeatability and intervention speed (16 m/s). Holding force of piston rod without axial play <_ 3 times the thrust force of the cylinder at 6 bar pressure. If there is no signal and/or air supply the locking unit blocks.
