Description

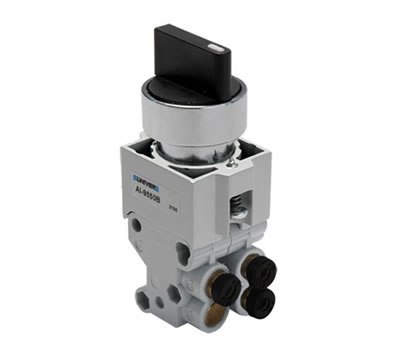

The new AI-JET2 valves with the mechanical operation for panel mounting are now available to complete the UNIVER JET series of pneumatic limit switches. Poppet commutation system.
Different versions are available: 2/2-3/2 both NO and NC; 5/2 – 5/3 both with pressurized and open centres. Possibility to choose among a number of actuators, from push buttons to lever and key selectors.
| AMBIENT TEMPERATURE | -10 ÷ +90 °C |
| FLUID | 50 μm filtered air, with or without lubrication |
| COMMUTATION SYSTEM | Poppet |
| MAX PRESSURE | 10 bar |
| CONNECTIONS | M5, tube Ø4 |
| NOMINAL BORE (MM) | 2,5 |
| NOMINAL FLOW RATE (NI/MIN) | 70 |
| VALVE BODY | Zamak |
| SEALS | NBR |
| SPOOL | Nickel-plated brass |
