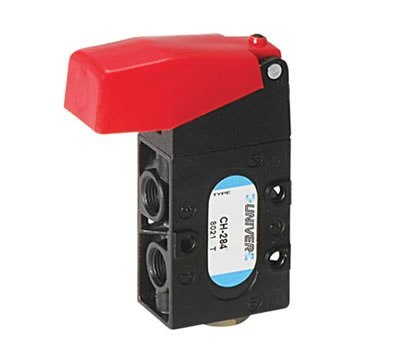

Description
Closed centres. High flow rate. Quick response time. Suitable for heavy duties and where the number of mechanical operation is high.
| AMBIENT TEMPERATURE | -10 ÷ +45 °C |
| FLUID | 50 μm filtered air, with or without lubrication |
| COMMUTATION SYSTEM | Poppet valve |
| MAX PRESSURE | 10 bar |
| CONNECTIONS | G 1/8 |
| NOMINAL BORE (MM) | 5 |
| NOMINAL FLOW RATE (NI/MIN) | 600 (NC), 550 (NO) |
| VALVE BODY | Zamak |
| SEALS | NBR |
| SPOOL | Nickel-plated brass |
