ACTUATORS WITH INTEGRATED DIGITAL MEASURING DETECTOR & LOCKING SYSTEM

Actuators with integrated digital measuring detector and locking system

Description

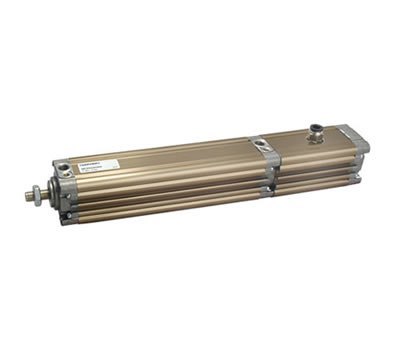

Pneumatic cylinder with integrated safety locking system and digital measuring detector Ø 32-63 mm (NTZ series). The system does not need to be connected to the moving part of the mechanism as it generates by itself the movement by means of an internal pusher with bidirectional pneumatic function.

WORKING PRESSURE 2÷10 bar
AMBIENT TEMPERATURE -10 ÷ 70
FLUID Filtered air 30 μm
BORE SIZE 032 – 040 – 050 – 063 mm
STANDARD STROKE Depending on bore size (refer to codification key)
BARREL Extruded barrel in aluminium alloy with groove for flush-mounted sensors.
PISTON ROD Chromium-plated steel
FUNCTIONING OF THE LOCKING UNIT Passive, in the absence of signal and/or air supply
MIN PRESSURE > 3 bar
HOLDING FORCE OF PISTON ROD > 3 times the thrust of the cylinder with air supply 6 bar
MAX SPEED 1 m/s
PRECISION OF REPEATABILITY ± 0,3 mm
