20MM G 1/8 VALVES & SOLENOID VALVES

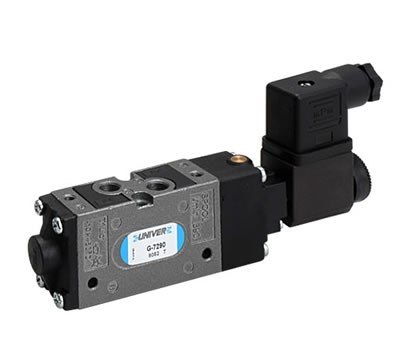

20mm G 1/8 Valves & Solenoid Valves for base assembly G7

Description

G1/8 threaded valve body with traditional Univer spool system. Versions available 5/2-5/3. Aluminium multiple sub-base.

AMBIENT TEMPERATURE -10 ÷ 45 °C
FLUID 50 μm filtered air, with or without lubrication
COMMUTATION SYSTEM Spool
MAX PRESSURE 10 bar
CONNECTOR G 1/8
NOMINAL BORE (MM) 6
NOMINAL FLOW RATE (NI/MM) 860
VALVE BODY Zamak
SEALS NBR
SPOOL Aluminium
ELECTROPILOT/COIL AA series/U1-U3
POWER CONSUMPTION 3,5 W (DC), 5 VA (AC)
VOLTAGE 24 V DC -12 V DC – 24 V AC – 110 V AC – 230 V AC
MANUAL OVERRIDE Impulse screw – 2 positions
