15MM COMPACT VALVES

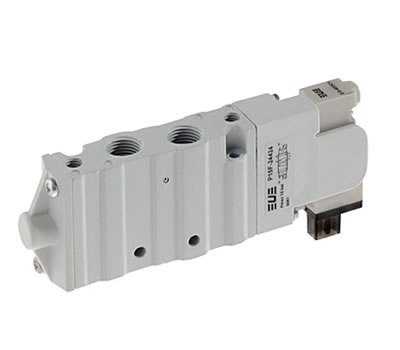

15mm Compact Valves P15

Description

10mm valve islands. New compact solenoid valves, threaded and for sub-base, 15 mm body width.

AMBIENT TEMPERATURE -5 ÷ +50 °C
FLUID TEMPERATURE Max +50°C
FLUID Filtered air 10 μm not dehumidified, lubricated or not
COMMUTATION SYSTEM Spool
WAYS/POSITIONS 3/2+3/2, 5/2, 5/3
PRESSURE Electric control = max 9 bar, pneumatic control = max 10 bar
CONTROL Indirect electro-pneumatic, pneumatic
RETURN Mechanical spring, pneumomechanical spring
CONNECTIONS P15F: G1/8, P15B: G1/8 – tube Ø 4-6-8
NOMINAL FLOW RATE (NI/MIN) 5/2 = 800 5/3 = 7203/2+3/2 = 720
