U – UNIVERSAL SUCTION CUP

For handling objects with flat or slightly curved surfaces.

B, B-MF – SUCTION CUP WITH SHORT BELLOWS

Suitable for level adjustment. Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items.

BF – SUCTION CUP WITH SHORT BELLOWS AND LARGE LIP

Suitable for uneven surface

BL, BX – SUCTION CUP WITH LONG BELLOWS

The same applications as for short bellows but can cope with greater differences in levels due to the longer lifting movement. Not suitable for use with deep vacuum levels.

F, F-MF – FLAT SUCTION CUP WITH INTERNAL CLEATS

Suitable for flat objects such as cardboard, sheet metal and porous materials. Cleats prevent objects from being deformed and give extra friction when the lifting force is parallel. The suction cup has good stability and very little movement.



D – DEEP SUCTION CUP

Used for curved and irregular surfaces. Can lift even over corners and edges. Not suitable for use on flat surfaces.

SUCTION CUP WITH VALVE

When several cups are connected together in a single system, for example in a lifting device, the system can be adversely affected if a suction cup leaks or misses the work-piece. To overcome this, each suction cup can be provided with a valve that opens only when the suction cup is in contact with the object. The advantages are increased safety, less air consumption and faster action.

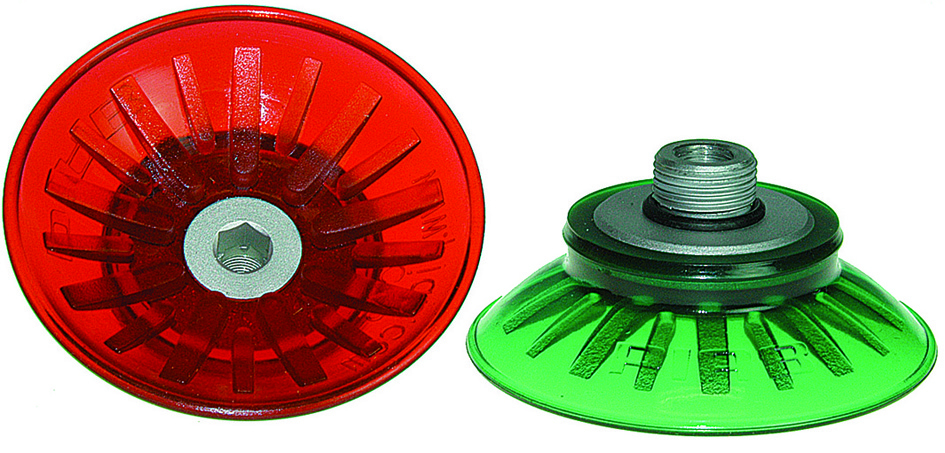

FC – FLAT, CONCAVE SUCTION CUP WITH INTERNAL CLEATS

Designed for flat and slightly curved surfaces. A typical application is the feeding of sheet metal into a press tool. The slightly curved shape and internal cleats provide a good grip and the strengthened lip extends the life of the cup considerably.

FC – FLAT-CONCAVE SUCTION CUP WITH INTERNAL CLEATS

Suitable for handling large, heavy objects with flat surfaces.

P & OP – SUCTION CUP WITH CELLULAR RUBBER PROFILE, ROUND AND OVAL

The round version is suitable for handling uneven and rough surfaces, for example blocks of stone, concrete or channeled plate. The soft cellular rubber provides a good seal against most surfaces. The oval shape provides good stability when handling thin objects.

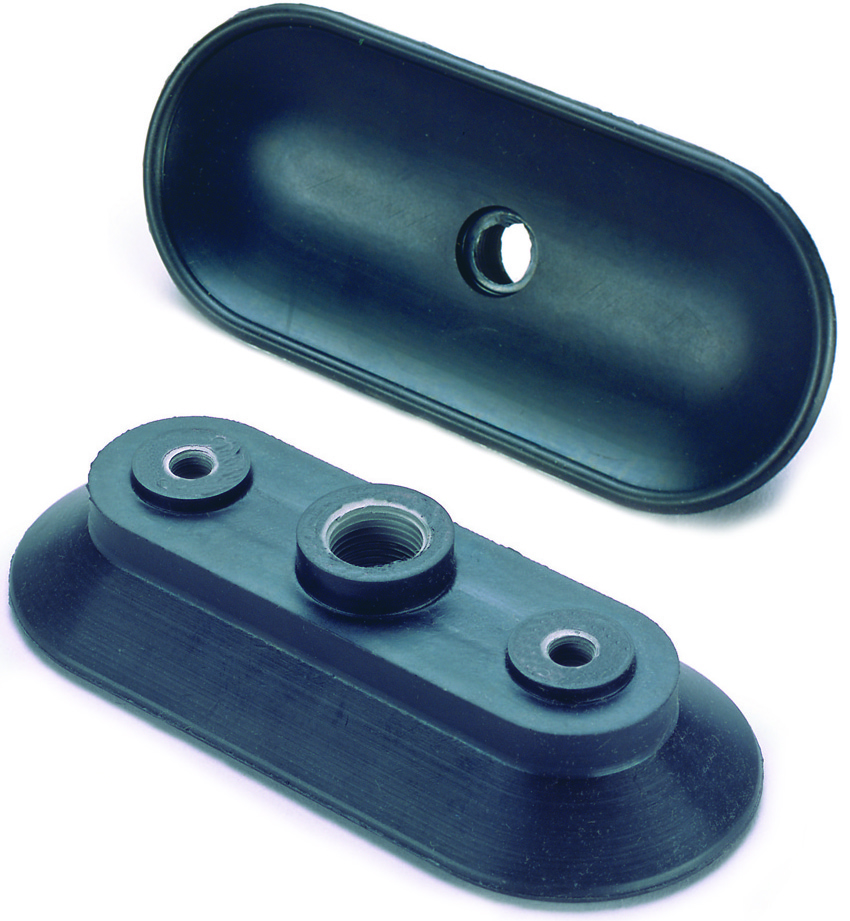

OC – OVAL, CONCAVE SUCTION CUP

Designed for flat and slightly curved surfaces. These suction cups have been developed for lifting metal sheets, glass sheets, etc., in the automotive industry. As primarily flat surfaces are to be handled, the lips of these cups are thicker, increasing the life of the suction cup considerably.

OF – OVAL, FLAT SUCTION CUP WITH INTERNAL CLEATS

Suitable for oblong, flat surfaces. Cleats prevent objects from being deformed and give extra friction when the lifting force is parallel. The suction cup has good stability and very little movement. Also suitable when lifting parallel as the cleats increase friction.

P2010 Bi -Bi SERIES

The Bi Cartridge has been developed to operate at a relatively high vacuum level at very low feed pressure (26 psi). The Bi Cartridge is recommended when you want to ensure high safety of operation in pick-and-place applications, for example, in the electronic industry, where many vacuum units are distributed and where there is a risk of pressure drops. The Bi Cartridge can handle vacuum levels down to 24.9-inHg.

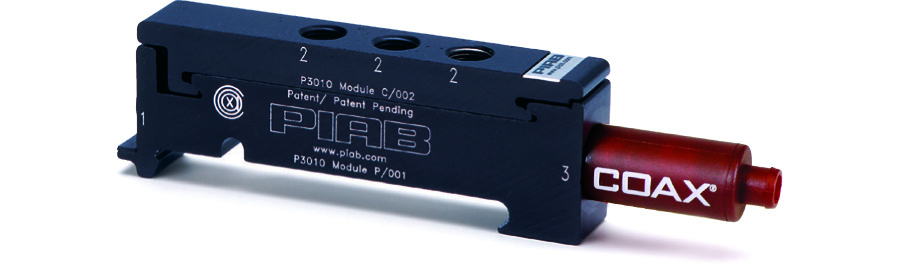

P3010 Pi -Pi SERIES

Pi cartridges have been developed to achieve a high vacuum level at low feed pressures. They are ideal when pressures in compressed air lines fluctuate. Pi cartridges are recommended in situations such as handling sheet metal or glass or other non-porous products, where you need good vacuum flow and a high-level vacuum. Pi can deliver high vacuum levels down to 27 -inHg.

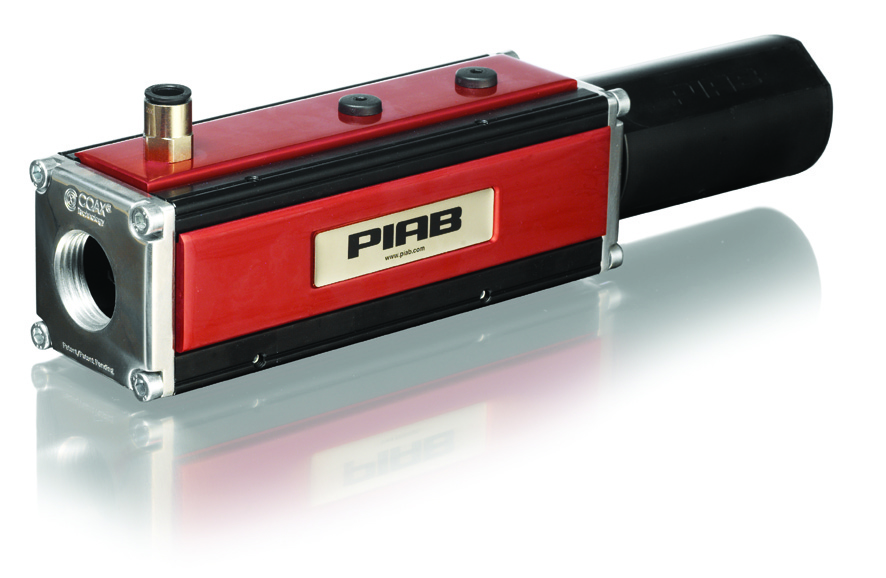

P6010 Pi series

Recommended operating range 0–27 -inHg

Maximum vacuum level 27 -inHg

Feed pressure 32-58 psi

P6010 Si - SERIES

Si cartridges are designed to provide extra vacuum flow. They are highly recommended for handling porous materials such as corrugated board and for high-volume evacuation in, for example, a fast-cycling system where it is necessary to compensate for leakage in order to maintain the vacuum level. Si cartridges can deliver moderate vacuum levels down to 22.2 -inHg.

L MINI L - SERIES PUMPS

PIAB L-pumps are designed and built to provide extra vacuum flow. They are highly recommended for handling porous materials such as cardboard and for high-volume evacuation in, for example, mixers or fast-cycling systems where it is necessary to compensate for leakage in order to maintain the vacuum.

L CLASSIC
M MINI M - SERIES PUMPS

PIAB M-pumps have been developed to perform well even at low feed pressures. They are thus ideal when pressures in compressed air lines are low or fluctuating. M-pumps are recommended in situations where you need good flow and a high-level vacuum. This is the most frequently used type of pump. They are used in most industrial vacuum pump applications.

M CLASSIC
X MINI X - SERIES PUMPS

PIAB X-pumps have been developed to provide excellent flow and deep vacuum. They are recommended in applications where a deep vacuum is required in, for example, high-speed feeders in packaging machines and different types of processes. Moreover, X-pumps can be driven by low feed pressures, a distinct advantage when pressures in compressed air lines are low or fluctuating.

H CLASSIC H-SERIES PUMPS

PIAB H-pumps provide very high vacuum, and they are recommended in applications with little or no leakage, such as in laboratory applications and in other processes requiring high vacuum levels.

PIAB Modular Automation Tooling- PMAT

PIAB’s Modular Automation Tooling (PMAT) allows you to construct vacuum end effector tools to meet your needs with minimal design time. The tooling system, which is made out of hard coat anodized aluminium, is lightweight and easy to assemble on-site without welding or use of special tools. PMAT also offers the benefits of adjustability and rigidity in the same product, with the simplest serviceability offered by any supplier on today’s market.
PMAT can be used to construct end effector tools for use on any automation equipment needs you may have. The tooling consists of a swivel arm assembly with a choice of various functional attachments, including an integrated vacuum pump. The air-driven pump provides both vacuum through COAX® technology and a connection for blow-off pressure and can be equipped with a check valve feature called VacTrap®.

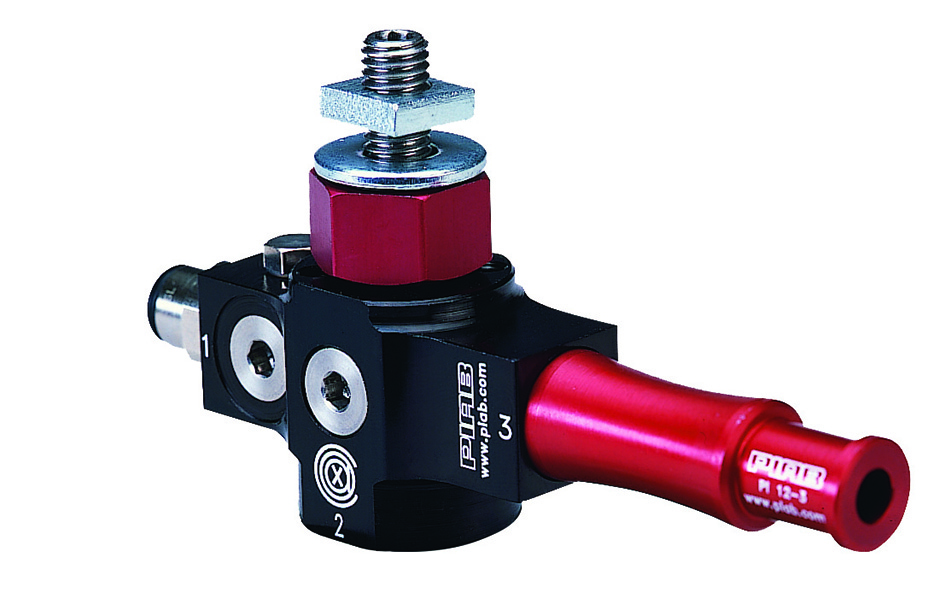

VGS™ 3010 cartridge with DURAFLEX® suction cups

Efficient material handling – VGS™3010 cartridge with DURAFLEX® suction cups

PIAB VGS™3010 – A new product design where high quality DURAFLEX® suction cups are integrated with a patented COAX® cartridge based on the latest COAX® technology. The result is a vacuum “gripper” that makes selection, sizing and installation of a vacuum system easier, plus you will enjoy the benefits of a more cost-efficient and reliable vacuum system.

Increase your productivity and reduce your costs with VGS™3010

  • Faster response time
  • Lower energy cost
  • Higher operation reliability

Easy selection and sizing — Knowledge about your specific vacuum flow, level or volume requirements are not required. Only feed pressure and the material being handled determine the optimal VGS™3010 for your application.

Improved grip, lifting capacity and wear resistance with DURAFLEX® cups — Provides up to 50% higher frictional grip as compared to conventional cups.



PIAB Modular Automation Tooling- PMAT

PIAB’s Modular Automation Tooling (PMAT) allows you to construct vacuum end effector tools to meet your needs with minimal design time. The tooling system, which is made out of hard coat anodized aluminium, is lightweight and easy to assemble on-site without welding or use of special tools. PMAT also offers the benefits of adjustability and rigidity in the same product, with the simplest serviceability offered by any supplier on today’s market.

PMAT can be used to construct end effector tools for use on any automation equipment needs you may have. The tooling consists of a swivel arm assembly with a choice of various functional attachments, including an integrated vacuum pump. The air-driven pump provides both vacuum through COAX® technology and a connection for blow-off pressure and can be equipped with a check valve feature called VacTrap®.

VGS™3010

Increase your productivity and reduce your costs with VGS™3010

Faster response time
Lower energy cost
Higher operation reliability

Easy selection and sizing — Knowledge about your specific vacuum flow, level or volume requirements are not required. Only feed pressure and the material being handled determine the optimal VGS™3010 for your application.

Improved grip, lifting capacity and wear resistance with DURAFLEX® cups — Provides up to 50% higher frictional grip as compared to conventional cups.

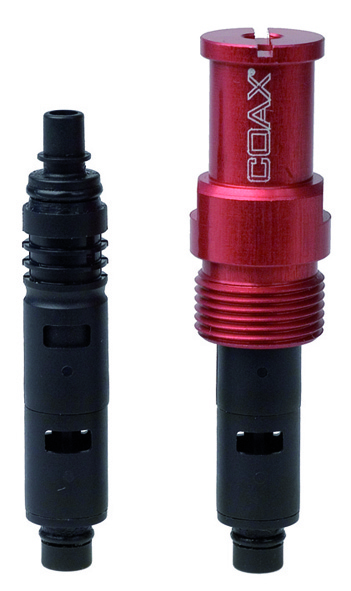

COAX® cartridge Mini Pi12-2

Vacustat COAX®

PIAB introduces a market-unique decentralized vacuum pump for sealed applications. The pump is equipped with an integrated air-saving function and a COAX® cartridge Mini Pi12-2. The pump also contains a built-in check valve on a blow-off port.

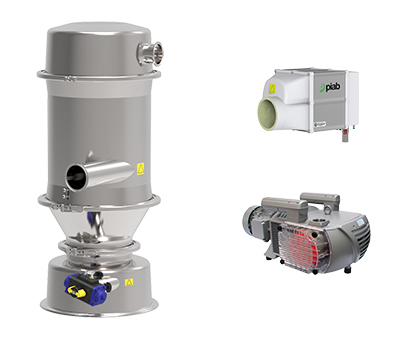

Premium – piFLOW®p

This is a conveyor when a premium technology is needed, e.g. in the food and pharmaceutical industry. It also makes sense when there is a big demand on high throughput performance with a small foot print. All conveyors are available with either an ejector driven vacuum pump or with a mechanical pump.

Automotive Vacuum Handling Solutions

PIAB Automotive Vacuum Handling System provides solutions which:

Reduce your plant energy consumption
Increase plant reliability
Increase plant safety
Increase equipment flexibility

As a specialist in automation with vacuum, PIAB not only offers components but can provide energy saving solutions. PIAB focuses on matters relating to energy saving, cycle time, safety, product rejections and flexibility.

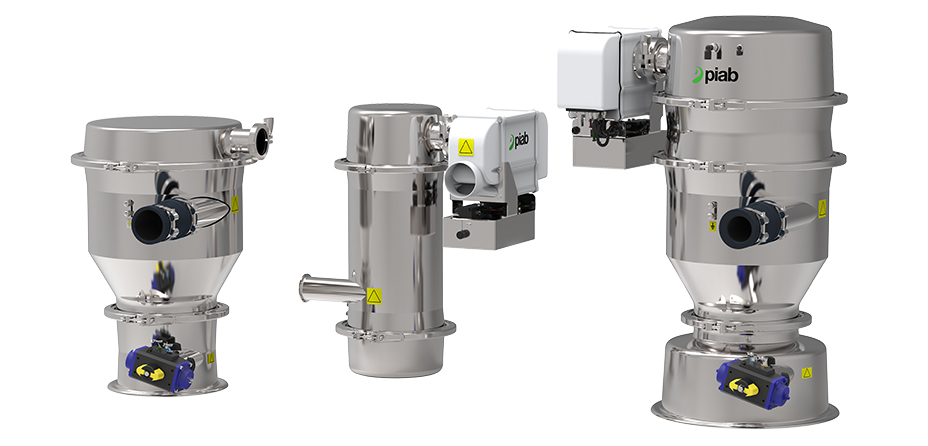

Tablet – piFLOW®t

This is a conveyor when a premium technology is needed while transporting fragile tablets, capsules, coffee, granules and other fragile products in the pharmaceutical, food and nutraceutical industries. It also makes sense when there is a big demand on high throughput performance with a small foot print.
