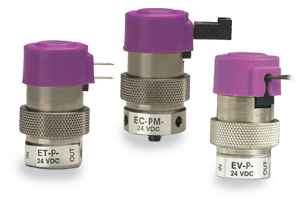

EVP PROPORTIONAL VALVE series (electronic)

This product combines the features of the existing EV series valve – long life, low power, and rugged design and fast response. The EVP Valve series contains a redesign of the heart of the mouse valve in the flexing element of the spider. The spider provides a controlled variable flow rate based upon a change in the electrical current provided to the valve. The EVP Series valve provides control of air or gas flow, and varies the output flow based on the current input to the solenoid which operates the spider. Consistent gain provides a high degree of control for many applications. Control and overall value are some of the main features of the EVP Proportional Valve. The valve may be controlled using DC current, open- or closed-loop control, and PWM (pulse width modulation) to cover a broad range of applications. The EVP series provides a very linear gain rate throughout its flow & pressure variations. Note the variation of +/-10% in hysteresis curve on graph, providing a stable and predictable flow profile.

Series EVB-2 2013, EVB-3 Booster Valve

Designed to operate using the mouse valve as its pilot valve providing approximately 10 times the flow of the standard mouse valve. Available in an unlimited variety of directional, flow, pressure and special control valve encased in a body designed to mount on a subplate and link with a simple piping system.

MINIMATIC EV/ET ELECTRONIC MOUSE VALVES

Clippard Minimatic EV/ET Electronic valves and manifolds provide a complete system for efficient interface with electric and electronic circuits with special application in the medical industry. The standard valves convert low voltage, low current signals into high pressure (100 psig) pneumatic outputs. Optional low pressure/medium flow and low pressure/high flow models are available. The valves are precision-built 2- way or 3-way control valves, utilizing a unique valving principle with no sliding parts. Complete poppet travel is a mere .007” resulting in low power consumption and exceptionally long life. Special valves made of stainless steel with Viton or EPDM seals are also available. All valves are lubricated with oxygen compatible lubricants.
These valves are supplied in normally closed, normally open and universal styles.

E-SERIES VALVES

The E-Series are fully ported and can be solenoid or air piloted. Provide flexibility for use in many applications.
For example from a multiple of 4 way valves manifold mounted to control cylinders to a single remote mounted 4-way to pilot a large pneumatic/air piloted hydraulic device.

ELECTRONIC VALVES

Leonard Clippard started Clippard Instrument Laboratory as an electronics manufacturer in the 1940’s. Since that time, the company has made great strides in developing reliable products for automation. The Mouse valve sets the standard for the industry in reliability and life. That product was later expanded to include the ES (stubby) valve and the EI Intrinsically Safe valve. In addition, Clippard offers the EE3 10 millimetre valve as well as the E3 and E4 Eagle series valves. And now the company introduces the EVP proportional EV class valve.

2, 3 & 4 WAY CONTROL VALVES

The company that pioneered the #10-32 thread as a port, maintains an attitude of quality as evidenced by their 100% testing of every product they assemble. Available in poppet or spool design, 2,3, or 4 way functions, metric/imperial for pressure up to 300 psig. Available with solenoid, air pilot, manual or mechanical actuators. Mountable – inline, panel and manifold.

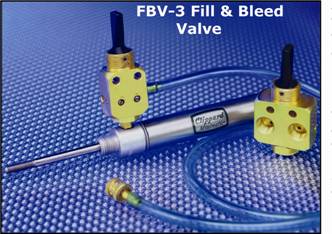

FILL & BLEED Toggle Valves

This new “fill and bleed” toggle valve has two poppet valves connected to a single outlet. The operation is similar to a three-way, three position centre-blocked valve. The FBV-3 offers an extreme amount of flexibility in adjusting flow controls, when pressurizing or “fill” and de-pressurizing or “bleed”, simply by changing positions of the toggle. Two built in needle valves provide the speed control needed for extend and retract applications.
Non-adjustable models are also available. FTV-3 valve, compact and easy to install valves are available with several toggle position options offering unlimited application possibilities.

CHECK VALVES

There are a variety of check valves which limit flow to one direction only. Made from bright-dipped brass and provide for inline mounting.
There are many models of adjustable flow control valves featuring a combination of needle and check valve which controls flow in one direction whilst allowing free flow in the other. These are ideal for cylinders providing a slow extend stroke and a fast retract stroke.

FlOW CONTROL VALVES

There are a variety of check valves which limit flow to one direction only. Made from bright-dipped brass and provide for inline mounting.

There are many models of adjustable flow control valves featuring a combination of needle and check valve which controls flow in one direction whilst allowing free flow in the other. These are ideal for cylinders providing a slow extend stroke and a fast retract stroke.

Shuttle Valves

Clippard offer various shuttle and needle valves that allow flow from one inlet whilst blocking the other inlet.
Exhaust occurs at the port where pressure was last applied. Can be mounted directly to valves & cylinders or inline using hose barbs on certain models. Adjustable control needle valves restrict the flow in both directions through various configurations to provide coarse or fine flow.

NEEDLE VALVES

Clippard offer various shuttle and needle valves that allow flow from one inlet whilst blocking the other inlet.
Exhaust occurs at the port where pressure was last applied. Can be mounted directly to valves & cylinders or inline using hose barbs on certain models. Adjustable control needle valves restrict the flow in both directions through various configurations to provide coarse or fine flow.

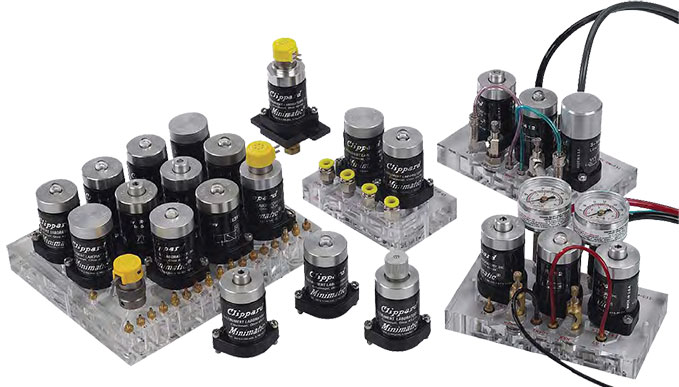

MODULAR VALVE SERIES

One of the major elements of Clippard’s award winning design concept is the manifold body of the Modular Valve Series.
It encircles a central valve cavity with air passages that can be used at any point along the axis of the valve. These passages terminate at the base of the body in a circular octoport pattern.
The body mates with a
manifold subplate which mounts the complete module and provides #10-32 tapped holes for standard hose fittings.
A single molded
Octoport gasket, held in place by the two mounting screws, insuring a positive seal.
Because of the easy availability of an air connection wherever it is required, the manifold body permits valve elements to be designed for maximum performance without the restrictive limitations of rigid port configurations.
It also allows
multiple porting, using two or more ports as an inlet, outlet, supply, etc. This reduces the amount of external piping needed to complete the circuit. Furthermore the manifold body enables the internal interconnection of ports. This is especially valuable in a number of modules that contain more than one valve.
The separate elements are interconnected in the same module to provide
complete sub-circuits such as three input “OR”, three input “AND”, or a two input “NOR”. These functions further reduce external piping.
The system operating range is 0-150 psig and recommended filtration is 40 micron

SUBPLATES AND MANIFOLDS

The Acrylic Pneumatic Circuit Boards are designed to provide a mounting base for Modular Valves and a Pneumatic Control System for the various Modular Valve Circuits.

Originally developed for use strictly in conjunction with Clippard’s modular valves, the line of acrylic sub-plates today has expanded to include the company’s electronic valves as well. These manifolds are constructed of multiple layers of acrylic that has been machined and laminated to give a ready-to-install logic circuit. This reduces assembly time and trouble-shooting to find leaks and incorrect connections. Clippard offers a variety of standard circuits for applications such as ‘two-hand no tie down’ safety, ‘automatic cycling without limits’ and ‘oscillation’ circuits.



BRASS CYLINDERS
Clippard offers more types of miniature pneumatic cylinders for the designer’s convenience, including: spring return, spring extend, air retract, double-acting and double rod models. From sub-miniature (5/32″ bore) to heavy-duty (7/8″ bore), the extensive Clippard line provides a wide selection of bore sizes to suit any application requirement. An even wider range of strokes are available in the complete Clippard line of miniature cylinders, in stroke sizes ranging from 1/4″ to 20″.
• Rods are threaded and bonded to piston
• The original miniature pneumatic cylinder
• Buna-N “U”-cup rod seals for smooth leakproof operation
• Buna-N “U”-cup piston seals for full power, low friction and trouble-free performance
STAINLESS STEEL CYLINDERS

Air cylinders have always been an integral part of the Clippard Minimatic® line. Over the years Clippard has responded to requests from cylinder users to provide additional sizes of air cylinders and auxiliary support products. While competitively priced, these products maintain the Clippard standard for quality and reliability that has been the industry standard for many years.

AIRFORCE-ONE CYLINDERS

Compact cylinders where space or harsh environment is an issue. AFO cylinders feature stainless steel tube with roller burnished piston rod.
Applications where abrasive dirt may be ingested and deteriorate seals causing wear. With tie rod construction seals can be replaced easily rather than replacing the entire cylinder.

BRASS | QUICK CONNECT | SLIP-ON | PUSH QUICK

No circuit can be complete until the connections are made. Clippard offers a wide array of products for your design from barbed fittings for 1/16” ID tubing to the new Push-Quick push-to-connect line, Clippard has the fitting for you. And don’t forget our selection of tubing. Clippard has recently expanded into several new durometer ranges as well as adding new sizes to the hose and tubing line.

While others were thinking about large fittings, Clippard was thinking big about smaller fittings. Smaller valves and cylinders created the need for smaller fittings. Clippard was the first to develop ports utilizing the 10-32 thread. This thread has become an industry standard in the marketplace.

Clippard precision fittings will save you time, space, and money when designing versatile, productive, trouble free, pneumatic circuits. Our endless variety of fittings insures that you find just the right fit when plumbing pneumatic circuits or assemblies. These fittings are small in size but large in performance, allowing for streamlining of pneumatic assemblies and eliminating the need for larger, more expensive, cumbersome fittings.
