Beck Air

ImageNameCategoriesSummary
BRJ6A AIRMISER JET

Inlet Air Flow (m3/hr) – 6.8

Total Outlet Air Flow  (m3/hr) – 221

Hose Bore for Ducting (mm) – 19

Weight (grams) – 60

Replacing open jets with airmisers will give significantly reduced air consumption and lower noise levels and in most cases it is a simple operation to install airmiser nozzles.

Airmisers are suitable for use individually or in multiple arrays to create a much greater effect.

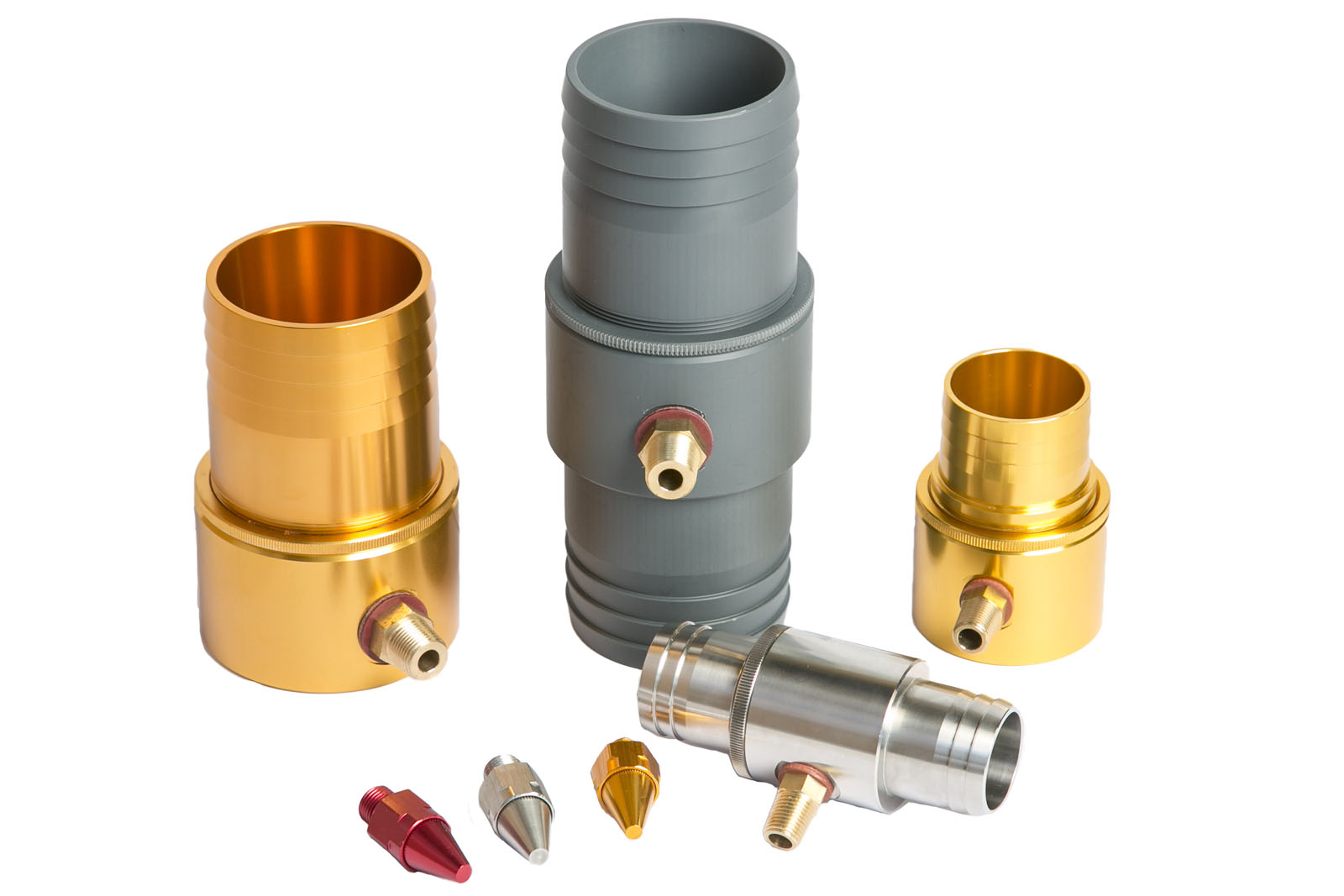

BRJ12A RINGJET AMPLIFIER

Inlet Air Flow (m3/hr) – 10.2

Total Outlet Air Flow  (m3/hr) – 340

Hose Bore for Ducting (mm) – 19

Weight (grams) – 50

A range of small, versatile ‘bladeless’ fans suitable for a wide variety of blowing and extraction applications; typically fume and moisture removal, small particle conveying (pellets, filings and paper trimmings) and cooling.

The standard models incorporate a discharge ribbed hose spigot. Ringjets can be positioned immediately adjacent to the product, typically using the variable position Rigiflex hose accessory. Ringjets can be split through a casing wall (bulkhead mounting).

Special conveyor models incorporate both suction and delivery hose rib spigots and can be used in series to cover greater distances.

Seven models in the standard range have throat diameters from 6mm-75mm (1/4″-3″) and achieve outlet air flows from 221-2000m3/hr (130-1100cfm). Ringjets are available in a choice of materials to suit service conditions: aluminium, PVC, stainless steel, brass.

BRJ20A RINGJET AMPLIFIER

Inlet Air Flow (m3/hr) – 17.0

Total Outlet Air Flow  (m3/hr) – 408

Hose Bore for Ducting (mm) – 31.5

Weight (grams) – 75

A range of small, versatile ‘bladeless’ fans suitable for a wide variety of blowing and extraction applications; typically fume and moisture removal, small particle conveying (pellets, filings and paper trimmings) and cooling.

The standard models incorporate a discharge ribbed hose spigot. Ringjets can be positioned immediately adjacent to the product, typically using the variable position Rigiflex hose accessory. Ringjets can be split through a casing wall (bulkhead mounting).

Special conveyor models incorporate both suction and delivery hose rib spigots and can be used in series to cover greater distances.

Seven models in the standard range have throat diameters from 6mm-75mm (1/4″-3″) and achieve outlet air flows from 221-2000m3/hr (130-1100cfm). Ringjets are available in a choice of materials to suit service conditions: aluminium, PVC, stainless steel, brass.



BRJ25A RINGJET AMPLIFIER

Inlet Air Flow (m3/hr) – 23.8

Total Outlet Air Flow  (m3/hr) – 680

Hose Bore for Ducting (mm) – 38

Weight (grams) – 185

A range of small, versatile ‘bladeless’ fans suitable for a wide variety of blowing and extraction applications; typically fume and moisture removal, small particle conveying (pellets, filings and paper trimmings) and cooling.

The standard models incorporate a discharge ribbed hose spigot. Ringjets can be positioned immediately adjacent to the product, typically using the variable position Rigiflex hose accessory. Ringjets can be split through a casing wall (bulkhead mounting).

Special conveyor models incorporate both suction and delivery hose rib spigots and can be used in series to cover greater distances.

Seven models in the standard range have throat diameters from 6mm-75mm (1/4″-3″) and achieve outlet air flows from 221-2000m3/hr (130-1100cfm). Ringjets are available in a choice of materials to suit service conditions: aluminium, PVC, stainless steel, brass.





BRJ40A RINGJET AMPLIFIER

Inlet Air Flow (m3/hr) – 30.6

Total Outlet Air Flow  (m3/hr) – 849

Hose Bore for Ducting (mm) – 50

Weight (grams) – 285

A range of small, versatile ‘bladeless’ fans suitable for a wide variety of blowing and extraction applications; typically fume and moisture removal, small particle conveying (pellets, filings and paper trimmings) and cooling.

The standard models incorporate a discharge ribbed hose spigot. Ringjets can be positioned immediately adjacent to the product, typically using the variable position Rigiflex hose accessory. Ringjets can be split through a casing wall (bulkhead mounting).

Special conveyor models incorporate both suction and delivery hose rib spigots and can be used in series to cover greater distances.

Seven models in the standard range have throat diameters from 6mm-75mm (1/4″-3″) and achieve outlet air flows from 221-2000m3/hr (130-1100cfm). Ringjets are available in a choice of materials to suit service conditions: aluminium, PVC, stainless steel, brass.





BRJ50A RINGJET AMPLIFIER

Inlet Air Flow (m3/hr) – 57.7

Total Outlet Air Flow  (m3/hr) – 1240

Hose Bore for Ducting (mm) – 76

Weight (grams) – 700

A range of small, versatile ‘bladeless’ fans suitable for a wide variety of blowing and extraction applications; typically fume and moisture removal, small particle conveying (pellets, filings and paper trimmings) and cooling.

The standard models incorporate a discharge ribbed hose spigot. Ringjets can be positioned immediately adjacent to the product, typically using the variable position Rigiflex hose accessory. Ringjets can be split through a casing wall (bulkhead mounting).

Special conveyor models incorporate both suction and delivery hose rib spigots and can be used in series to cover greater distances.

Seven models in the standard range have throat diameters from 6mm-75mm (1/4″-3″) and achieve outlet air flows from 221-2000m3/hr (130-1100cfm). Ringjets are available in a choice of materials to suit service conditions: aluminium, PVC, stainless steel, brass.



BRJ75A RINGJET AMPLIFIER

Inlet Air Flow (m3/hr) – 85.0

Total Outlet Air Flow  (m3/hr) – 2000

Hose Bore for Ducting (mm) – 100

Weight (grams) – 1900

A range of small, versatile ‘bladeless’ fans suitable for a wide variety of blowing and extraction applications; typically fume and moisture removal, small particle conveying (pellets, filings and paper trimmings) and cooling.

The standard models incorporate a discharge ribbed hose spigot. Ringjets can be positioned immediately adjacent to the product, typically using the variable position Rigiflex hose accessory. Ringjets can be split through a casing wall (bulkhead mounting).

Special conveyor models incorporate both suction and delivery hose rib spigots and can be used in series to cover greater distances.

Seven models in the standard range have throat diameters from 6mm-75mm (1/4″-3″) and achieve outlet air flows from 221-2000m3/hr (130-1100cfm). Ringjets are available in a choice of materials to suit service conditions: aluminium, PVC, stainless steel, brass.

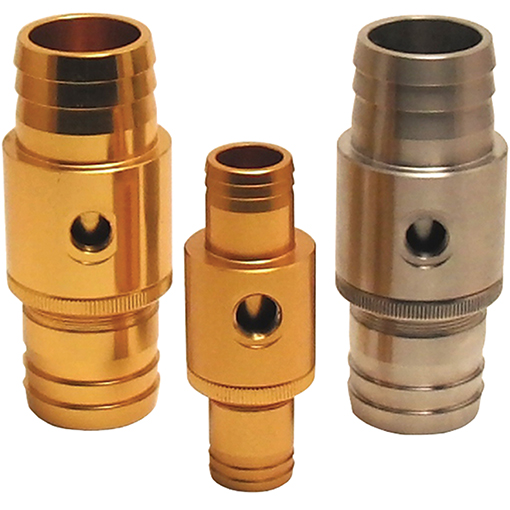

BRJ12C Ringjet Conveyor

Throat Diameter (mm) – 12

Outside Diameter (mm) – 25

Overall length (mm) – 63

Air Inlet Thread (BSP) – 1/8″

Ringjets Air Conveyors are bladeless, motorless fans which connect to flexible hose and are ideal for conveying and extracting all kinds of materials in process, food and manufacturing industries.

Using a small volume of compressed air as the power source, Ringjets utilise the “Coanda” effect to draw larger volumes of ambient air into the device to amplify the air flow by up to 25 times.

Ringjet conveyors are capable of moving material over long distances and this can be increased by adding additional conveyors into the line.

BRJ20C Ringjet Conveyor

Throat Diameter (mm) – 20

Outside Diameter (mm) – 40

Overall length (mm) – 63

Air Inlet Thread (BSP) – 1/8″

Ringjets Air Conveyors are bladeless, motorless fans which connect to flexible hose and are ideal for conveying and extracting all kinds of materials in process, food and manufacturing industries.

Using a small volume of compressed air as the power source, Ringjets utilise the “Coanda” effect to draw larger volumes of ambient air into the device to amplify the air flow by up to 25 times.

Ringjet conveyors are capable of moving material over long distances and this can be increased by adding additional conveyors into the line.

BRJ25C Ringjet Conveyor

Throat Diameter (mm) – 25

Outside Diameter (mm) – 50

Overall length (mm) – 90

Air Inlet Thread (BSP) – 1/4″

Ringjets Air Conveyors are bladeless, motorless fans which connect to flexible hose and are ideal for conveying and extracting all kinds of materials in process, food and manufacturing industries.

Using a small volume of compressed air as the power source, Ringjets utilise the “Coanda” effect to draw larger volumes of ambient air into the device to amplify the air flow by up to 25 times.

Ringjet conveyors are capable of moving material over long distances and this can be increased by adding additional conveyors into the line.

BRJ40C Ringjet Conveyor

Throat Diameter (mm) – 40

Outside Diameter (mm) – 63

Overall length (mm) – 95

Air Inlet Thread (BSP) – 1/4″

Ringjets Air Conveyors are bladeless, motorless fans which connect to flexible hose and are ideal for conveying and extracting all kinds of materials in process, food and manufacturing industries.

Using a small volume of compressed air as the power source, Ringjets utilise the “Coanda” effect to draw larger volumes of ambient air into the device to amplify the air flow by up to 25 times.

Ringjet conveyors are capable of moving material over long distances and this can be increased by adding additional conveyors into the line.

BRJ50C Ringjet Conveyor

Throat Diameter (mm) – 40

Outside Diameter (mm) – 90

Overall length (mm) – 135

Air Inlet Thread (BSP) – 3/8″

Ringjets Air Conveyors are bladeless, motorless fans which connect to flexible hose and are ideal for conveying and extracting all kinds of materials in process, food and manufacturing industries.

Using a small volume of compressed air as the power source, Ringjets utilise the “Coanda” effect to draw larger volumes of ambient air into the device to amplify the air flow by up to 25 times.

Ringjet conveyors are capable of moving material over long distances and this can be increased by adding additional conveyors into the line.

BRJ75C Ringjet Conveyor

Throat Diameter (mm) – 75

Outside Diameter (mm) – 132

Overall length (mm) – 165

Air Inlet Thread (BSP) – 1/2″

Ringjets Air Conveyors are bladeless, motorless fans which connect to flexible hose and are ideal for conveying and extracting all kinds of materials in process, food and manufacturing industries.

Using a small volume of compressed air as the power source, Ringjets utilise the “Coanda” effect to draw larger volumes of ambient air into the device to amplify the air flow by up to 25 times.

Ringjet conveyors are capable of moving material over long distances and this can be increased by adding additional conveyors into the line.

BCJ425 CLUSTAJET VENTILATOR

Hose Size – 102mm

Air Inlet 1/4″

Air Consumption – 395 SLPM

Outlet Air Flow – 12700 SLPM

Diameter – 102mm

High volume air/fume movers which use an array of aluminium Ringjets mounted inside a mild steel cylinder
(alternative materials may be specified).

Four models are available with outputs between 765-5270m3/hr (450-3100cfm). Flexible blowing/extract hoses 102mm-305mm (4″-12″) in diameter can be attached at each end of ventilator casing. They are typically used for exhaust fume extraction from large tanks and chambers or fresh air ventilation/cooling of workers in confined spaces. They can also be incorporated into pipelines for gas conveying.

BCJ620 CLUSTAJET VENTILATOR

Hose Size – 152mm

Air Inlet 1/42″

Air Consumption – 1130 SLPM

Outlet Air Flow – 18400 SLPM

Diameter – 152mm

High volume air/fume movers which use an array of aluminium Ringjets mounted inside a mild steel cylinder
(alternative materials may be specified).

Four models are available with outputs between 765-5270m3/hr (450-3100cfm). Flexible blowing/extract hoses 102mm-305mm (4″-12″) in diameter can be attached at each end of ventilator casing. They are typically used for exhaust fume extraction from large tanks and chambers or fresh air ventilation/cooling of workers in confined spaces. They can also be incorporated into pipelines for gas conveying.





BCJ825 CLUSTAJET VENTILATOR

Hose Size – 203mm

Air Inlet 1″

Air Consumption – 2265 SLPM

Outlet Air Flow – 34800 SLPM

Diameter – 203mm

High volume air/fume movers which use an array of aluminium Ringjets mounted inside a mild steel cylinder
(alternative materials may be specified).

Four models are available with outputs between 765-5270m3/hr (450-3100cfm). Flexible blowing/extract hoses 102mm-305mm (4″-12″) in diameter can be attached at each end of ventilator casing. They are typically used for exhaust fume extraction from large tanks and chambers or fresh air ventilation/cooling of workers in confined spaces. They can also be incorporated into pipelines for gas conveying.

BCJ1250 CLUSTAJET VENTILATOR

Hose Size – 305mm

Air Inlet – 1″

Air Consumption – 4250 SLPM

Outlet Air Flow – 72200 SLPM

Diameter – 305mm

High volume air/fume movers which use an array of aluminium Ringjets mounted inside a mild steel cylinder
(alternative materials may be specified).

Four models are available with outputs between 765-5270m3/hr (450-3100cfm). Flexible blowing/extract hoses 102mm-305mm (4″-12″) in diameter can be attached at each end of ventilator casing. They are typically used for exhaust fume extraction from large tanks and chambers or fresh air ventilation/cooling of workers in confined spaces. They can also be incorporated into pipelines for gas conveying.

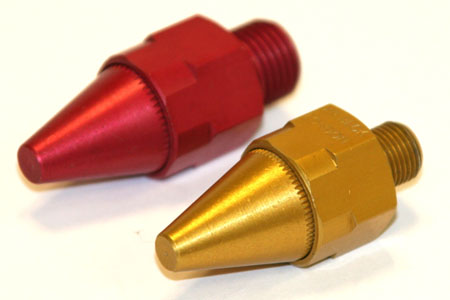

AMMA : MINI-AIRMISER nozzle 10mm

(3/8″) OD used for blowing, cooling and ejection of small parts. The 6.4mm (1/4″) OD copper inlet tube 125mm (5″) long fits into combined spaces and is easily bent to the required shape to direct the air where it is needed.

AMSA : STANDARD-AIRMISER nozzle 19mm

(3/4″) hexagon used for medium duty blowing, cooling and ejection. Inlet thread external male, tapered 1/8″ BSP to ISO/7 (BS21).

Model AMBH : BLOWHARD-AIRMISER nozzle 19mm

(3/4″) hexagon for heavy duty blowing, cooling and parts ejection. Inlet thread external (male) tapered 1/4″ BSP to ISO/7 (BS21) for fitting to manifold or supply tubing. Ensure that all valves and fittings in lines feeding the BLOWHARD have MINIMUM orifice size of 6 mm (1/4″).

Special Model : AIRMISER

There are variations available in the standard production of Airmisers. These range from the tiny MICRO through the two 1/2″ BSP units to the “Monsters” 1″ BSP nozzle, produced for blasting swarf and debris from the support leg of a North Sea Oil Rig. Details of these special units on application.

AIRMISER AIRSTRIPS (Neublade)

The Pneumatic Airstrip is particularly suitable for drying applications in either hand held or stand mounted format.
